ESXi LLDP Uplink Details

A few years ago I have written a PowerCLI script to collect and report ESXi CDP informations. My use case of this script was the ability to verify the uplink redundancy of all ESXi Hosts in the inventory. It was about time to do a vendor-neutral refresh of the script. The new version of the PowerCLI function is now able to gather ESXi LLDP Uplink Details in addition to the exiting CDP possibility.

Unlike CDP, LLDP is only available with VMware vSphere Distributed Switch (VDS). But LLDP is not the only feature that makes VDS pretty interesting. My top features, besides the central management of port groups and their settings in huge environments, are:

VMware vSphere Network I/O Control (NIOC).
Link Aggregation Control Protocol (LACP)
Load Based Teaming (LBT) based on physical NIC load
Network health-check to verify physical network configuration
HTML5 Client feature to mass-add VMkernel Ports to distributed port groups

Per default, a new vSphere Distributed Switch is configured for CDP. On the Distributed Switch level the discovery type can be switched to Link Layer Discovery Protocol (LLDP). From the Operation drop-down menu, you can select the operational mode of the ESXi hosts connected to the Distributed Switch.

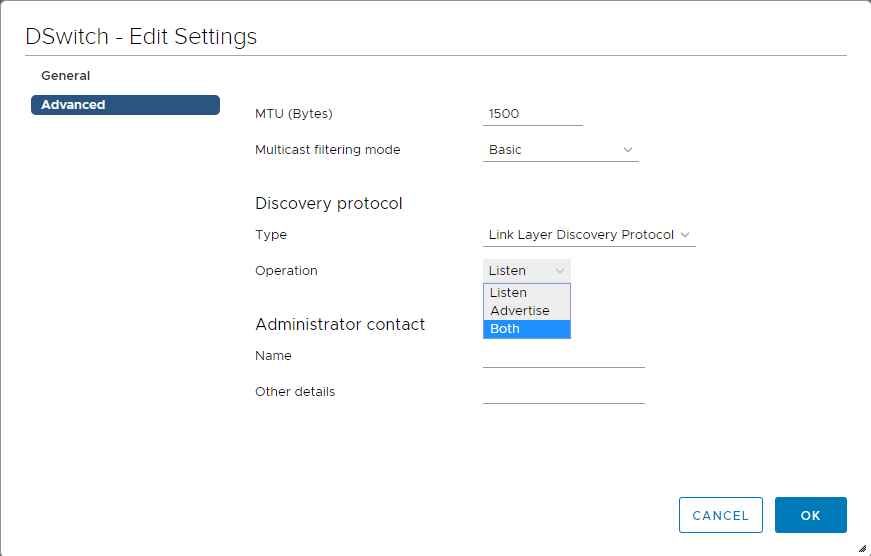

Enable Link Layer Discovery Protocol on a vSphere Distributed Switch

Operation	Description
Listen	ESXi detects and displays information about the associated physical switch port, but information about the vSphere Distributed Switch is not available to the switch administrator.
Advertise	ESXi makes information about the vSphere Distributed Switch available to the switch administrator, but does not detect and display information about the physical switch.
Both	ESXi detects and displays information about the associated physical switch and makes information about the vSphere Distributed Switch available to the switch administrator.

Source: Enable Link Layer Discovery Protocol on a vSphere Distributed Switch

VDS is available for all vSAN Editions and vSphere Enterprise Plus licenses.

Intel X710 NICs and LLDP

If you are using Intel X710 network cards, you should definitely check this community thread: https://communities.vmware.com/thread/575459

I had the same issue with HPE branded Intel X710 NICs and wrote a small PowerCLI snippet to set the required parameters to disable the Intel LLDP Agent on all hosts and let the ESXi receive and send LLDP packets.

Note:

The value of the parameterstring needs to be modified based on the number of ports in your setup.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


foreach ($vmhost in $vmhosts){
	#region: Set LLDP Configuration
	## esxcli system module parameters set -m i40en -p LLDP=0,0,0,0,0,0,0,0
	$esxcli = Get-ESXCLI -VMHost $vmhost -v2
	$esxcliargs = $esxcli.system.module.parameters.set.CreateArgs()
	$esxcliargs.module = "i40en"
	$esxcliargs.parameterstring = "LLDP=0,0,0,0,0,0,0,0"
	try {
		 $esxcli.system.module.parameters.set.Invoke($esxcliargs)
	}
	catch [System.Exception]  {
		Write-Warning "Error during LLDP Configuration. See latest errors..."
	}
	#endregion
}

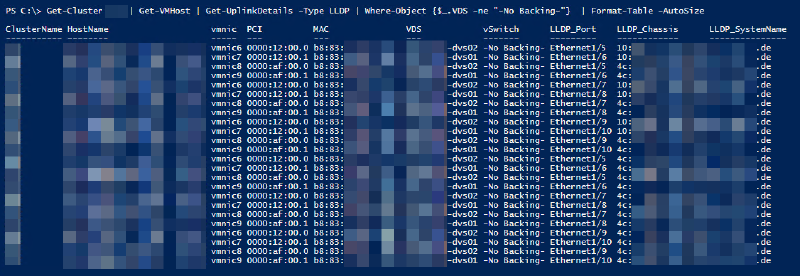

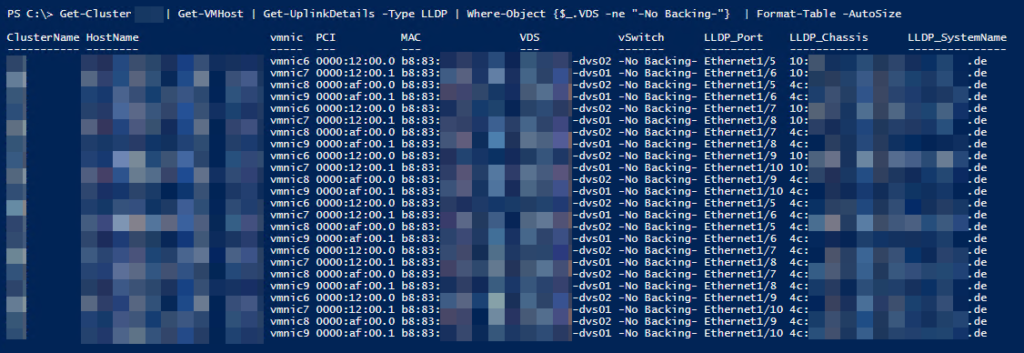

Get LLDP Uplink Details with PowerCLI

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147


function Get-UplinkDetails {
<#
    .NOTES
    ===========================================================================
    Created by: Markus Kraus
    ===========================================================================
    Changelog:
    2017.03 ver 1.0 Base Release
    2020.03 ver 1.1 Add LLDP Support
    ===========================================================================
    External Code Sources:
    Get-CDP Version from @LucD22
    https://communities.vmware.com/thread/319553

	LLDP PowerCLI Tweak
	https://tech.zsoldier.com/2018/05/vmware-get-cdplldp-info-from.html
    ===========================================================================
    Tested Against Environment:
    vSphere Version: vSphere 6.7 U3
    PowerCLI Version: PowerCLI 11.5
    PowerShell Version: 5.1
    OS Version: Server 2016
    Keyword: ESXi, Network, CDP, LLDP, VDS, vSwitch, VMNIC
    ===========================================================================

    .DESCRIPTION
    This Function collects detailed informations about your ESXi Host connections to pSwitch and VDS / vSwitch.
    LLDP Informations might only be available when uplinks are connected to a VDS.

    .Example
    Get-VMHost -Name MyHost | Get-UplinkDetails -Type LLDP | Where-Object {$_.VDS -ne "-No Backing-"}  | Format-Table -AutoSize

    .Example
    Get-VMHost -Name MyHost | Get-UplinkDetails -Type CDP | Where-Object {$_.VDS -ne "-No Backing-"}  | Format-Table -AutoSize

    .Example
    Get-Cluster -Name MyCluster | Get-VMHost | Get-UplinkDetails -Type LLDP | Format-Table -AutoSize

    .Example
    Get-Cluster -Name MyCluster | Get-VMHost | Get-UplinkDetails -Type CDP | Format-Table -AutoSize

    .PARAMETER myHosts
    Hosts to process


#Requires PS -Version 5.0
#Requires -Modules VMware.VimAutomation.Core, @{ModuleName="VMware.VimAutomation.Core";ModuleVersion="6.3.0.0"}
#>

[CmdletBinding()]
param(
    [Parameter(Mandatory=$True, ValueFromPipeline=$True, Position=0, HelpMessage = "Hosts to process")]
        [ValidateNotNullorEmpty()]
        [VMware.VimAutomation.ViCore.Impl.V1.Inventory.InventoryItemImpl[]] $myHosts,
    [Parameter(Mandatory=$True, ValueFromPipeline=$False, Position=1, HelpMessage = "Type of infos to collect (CDP / LLDP)")]
        [ValidateSet("CDP","LLDP")]
        [String] $Type

)

Begin {


    function Get-Info ($VMhost){
        $VMhostProxySwitch = $VMhost.NetworkInfo.ExtensionData.ProxySwitch
        $VMhostSwitch = $VMhost.NetworkInfo.VirtualSwitch

        $objReport = @()
        $VMhost| %{Get-View $_.ID} |
        %{ Get-View $_.ConfigManager.NetworkSystem} |
        %{ foreach($physnic in $_.NetworkInfo.Pnic){

            if($Type -eq "CDP"){
                $obj = "" | Select-Object ClusterName,HostName,vmnic,PCI,MAC,VDS,vSwitch,CDP_Port,CDP_Device,CDP_Address
            }
            elseif($Type -eq "LLDP"){
                $obj = "" | Select-Object ClusterName,HostName,vmnic,PCI,MAC,VDS,vSwitch,LLDP_Port,LLDP_Chassis,LLDP_SystemName
                }
                else{
                    Throw "Invalide Type"
                    }

            $pnicInfo = $_.QueryNetworkHint($physnic.Device)
            foreach($hint in $pnicInfo){
                $obj.ClusterName = $VMhost.parent.name
                $obj.HostName = $VMhost.name
                $obj.vmnic = $physnic.Device
                $obj.PCI = $physnic.PCI
                $obj.MAC = $physnic.Mac
                if ($backing = ($VMhostProxySwitch | where {$_.Spec.Backing.PnicSpec.PnicDevice -eq $physnic.Device})) {
                    $obj.VDS = $backing.DvsName
                    } else {
                        $obj.VDS = "-No Backing-"
                        }
                if ($backing = ($VMhostSwitch | where {$_.Nic -eq $physnic.Device})) {
                    $obj.vSwitch = $backing.name
                    } else {
                        $obj.vSwitch = "-No Backing-"
                        }
                if($Type -eq "CDP"){
                    if( $hint.ConnectedSwitchPort ) {
                        $obj.CDP_Port = $hint.ConnectedSwitchPort.PortId
                        $obj.CDP_Device = $hint.ConnectedSwitchPort.DevId
                        $obj.CDP_Address = $hint.ConnectedSwitchPort.Address
                        } else {
                            $obj.CDP_Port = "-No Info-"
                            $obj.CDP_Device = "-No Info-"
                            $obj.CDP_Address = "-No Info-"
                            }
                        }
                if($Type -eq "LLDP"){
                    if( $hint.LldpInfo ) {
                        $obj.LLDP_Port = $hint.LldpInfo.PortId
                        $obj.LLDP_Chassis = $hint.LldpInfo.ChassisId
                        $obj.LLDP_SystemName = ($hint.LldpInfo.Parameter | where key -eq "System Name").Value
                        } else {
                            $obj.LLDP_Port = "-No Info-"
                            $obj.LLDP_Chassis = "-No Info-"
                            $obj.LLDP_SystemName = "-No Info-"
                            }
                        }


            }
            $objReport += $obj
            }
        }
        $objReport
    }

}

Process {

    $MyView = @()

    foreach ($myHost in $myHosts) {

        $Info = Get-Info $myHost
        $MyView += $Info

	}

    $MyView | Sort-Object ClusterName, HostName, vmnic

    }
}
