NetApp NFS Export with Ansible

For some time now I have been focusing more on NetApp Data ONTAP again. As usual, automation is a spotlight of my interest. NetApp offers a lot of options around automation, for example, Data ONTAP PowerShell Toolkit, ONTAP REST APIs, Ansible modules for NetApp and many more. This blog post covers how to create a NetApp NFS Export with Ansible.

NetApp is a Red Hat certified support module vendor and ships a broad range of Certified Ansible modules. At the moment only nine vendors are on the list of Ansible certified modules.

Getting started with NetApp and Ansible

If you use a development environment similar to mine, that I have introduced in a previous blog post, just one additional python library is necessary to utilize the NetApp Data ONTAP Modules.

1
pip install netapp-lib

The Ansible Modules for NetApp Data ONTAP work similar to the VMware vSphere Modules. The host is ’localhost’ and all connection details are specified per module / task.

Playbook example task for a new Aggregate:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
- name: Create Aggregate
  na_ontap_aggregate:
    state: present
    service_state: online
    name: "{{ aggr_name }}"
    disk_count: 5
    wait_for_online: True
    time_out: 300
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

If you are interested in NetApp automation with Ansible and NetApp automation in general, netapp.io is a great source of news and knowledge. Please check also their Slack Workspace “thePub” and visit the #configurationmgmt channel for Ansible related discussions.

Ansible Collections

With the release of Ansible 2.9, Collections have been officially been introduced. NetApp is an early adopter of Ansible Collections and has already released its Data ONTAP modules as a Collection on Ansible Galaxy.

You can install and use Ansible Collections in different ways, one of the most common actions might be the installation with ‘ansible-galaxy’ command and a given fully qualified collection name (FQCN).

1
2
3
4
5
# Latest Version
ansible-galaxy collection install netapp.ontap

# Specific Version
ansible-galaxy collection install netapp.ontap:19.10.0

NetApp NFS Export with Ansible - Install Ansible Collection

If the Ansible Collection has been installed, you are able to specify the usage in your Playbook. If the Collection is not available the default module (if existing) will be used.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
- name: NetApp NFS Setup
  hosts: localhost
  gather_facts: no
  collections:
    - netapp.ontap
  vars:
    aggr_name: test
  tasks:
    - name: Create Aggregate
      na_ontap_aggregate:
        state: present
        service_state: online
        name: "{{ aggr_name }}"
        disk_count: 5
        wait_for_online: True
        time_out: 300
        hostname: "{{ netapp_hostname }}"
        username: "{{ netapp_username }}"
        password: "{{ netapp_password }}"
        https: true
        validate_certs: false

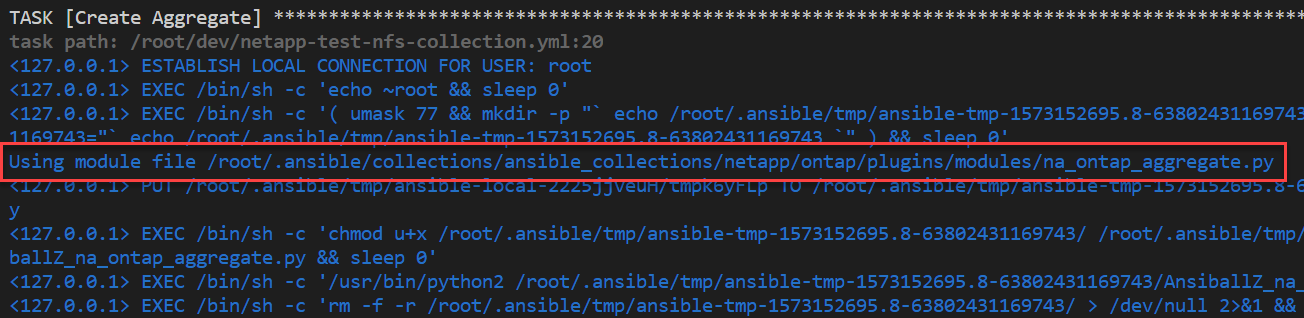

NetApp NFS Export with Ansible - Playbook execution in debug mode

Note:

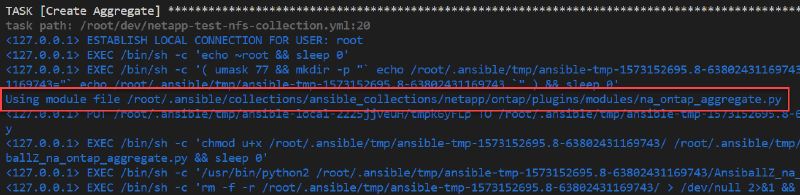

In my opinion it is quite difficult to see whether the Collection Module or the Standard Module is used.

To make sure that the Module from the Collection is used, you can use the fully qualified collection name (FQCN) in the tasks. If the Collection Module is not available in that case, the playbook or role task execution throws an error.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
---
- name: Create Aggregate
  netapp.ontap.na_ontap_aggregate:
    state: present
    service_state: online
    name: "{{ aggr_name }}"
    disk_count: 5
    wait_for_online: True
    time_out: 300
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

Create NetApp NFS Export with Ansible

For this blog post, I have used Ansible 2.9.0 with the NetApp Data ONTAP modules from the Collection version 19.10.1 to create the NetApp NFS export with Ansible. Similar to my prior Ansible project, I have created a Role to be more flexible in development and sharing.

My netapp_nfs Role executes the following tasks if all steps are enabled:

  1. Create Aggregate
  2. Create SVM
  3. Configure Broadcast Domain
  4. Create Interface
  5. Configure NFS Service
  6. Create NFS Export
  7. Create Volume and set Junction Path

As the Role is available on Ansible Galaxy you can use the ‘ansible-galaxy’ command for the installation.

1
ansible-galaxy install mycloudrevolution.netapp_nfs

Usage of the Role

The netapp_nfs Role can be included in any Ansible Playbook. The individual Role Tasks can be enabled or disabled by setting ’true’ or ‘false’ for the ‘create_*’ variables in my example. This design might be useful if you want to use for example an existing Aggregate.

You can find all available variables, expect the connection details, in the definition of the defaults for the Role. If you want to override a default variable, just define it in the Playbook.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
---
# defaults file for netapp_nfs
## role tasks
create_aggr: true
create_svm: true
create_broadcast: true
create_interface: true
create_vol: true
create_nfs: true
create_export: true
verify_export: false

## role vars
aggr_name: aggr_data002
broadcast_name: data_domain
broadcast_ports: ["netapp-01:e0a", "netapp-01:e0b"]
broadcast_ports_default: ["netapp-01:e0c", "netapp-01:e0d"]
if_home_port: e0b
if_home_node: netapp-01
if_address: 10.0.2.13
if_netmask: 255.255.255.0
vserver_name: data002
vol_name: vol_data002
vol_size: 1024
vol_size_unit: mb
export_policy_name: data002
export_policy_rule_client: 10.0.2.0/24
mount_directory: /mnt/verify

Playbook example for the execution of the netapp_nfs Role with all tasks enabled:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
- name: NetApp NFS Setup
  hosts: localhost
  gather_facts: no
  vars:
    create_aggr: true
    create_svm: true
    create_broadcast: true
    create_interface: true
    create_vol: true
    create_nfs: true
    create_export: true
    verify_export: true
    netapp_hostname: 10.0.2.11
    netapp_username: admin
    netapp_password: <Passw0rd>
  roles:
    - netapp_nfs

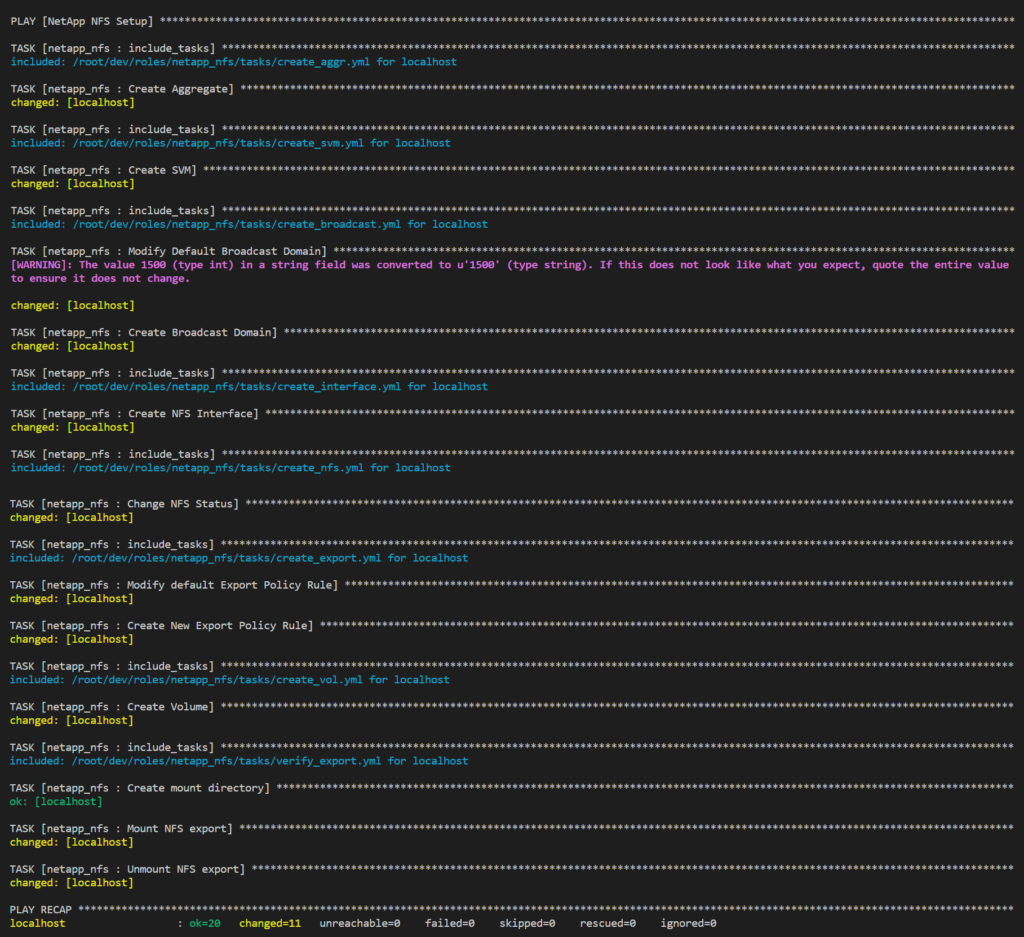

NetApp NFS Export with Ansible - Execution of the  netapp_nfs Role

The newly created NFS Export is now ready to be mounted.

NetApp NFS Export with Ansible - NFS 4.1 mount on Linux

Use of existing objects

If you want to use an existing object, like an Aggregate, you just need to disable the task ‘create_aggr’ and define the required variable.

Playbook example for the execution of the netapp_nfs Role with existing Aggregate:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
- name: NetApp NFS Setup
  hosts: localhost
  gather_facts: no
  vars:
    create_aggr: false
    create_svm: true
    create_broadcast: true
    create_interface: true
    create_vol: true
    create_nfs: true
    create_export: true
    verify_export: true
    netapp_hostname: 10.0.2.11
    netapp_username: admin
    netapp_password: <Passw0rd>
    aggr_name: ExistingAggr001
  roles:
    - netapp_nfs

Role Task details

Create Aggregate

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
---
- name: Create Aggregate
  netapp.ontap.na_ontap_aggregate:
    state: present
    service_state: online
    name: "{{ aggr_name }}"
    disk_count: 5
    wait_for_online: True
    time_out: 300
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

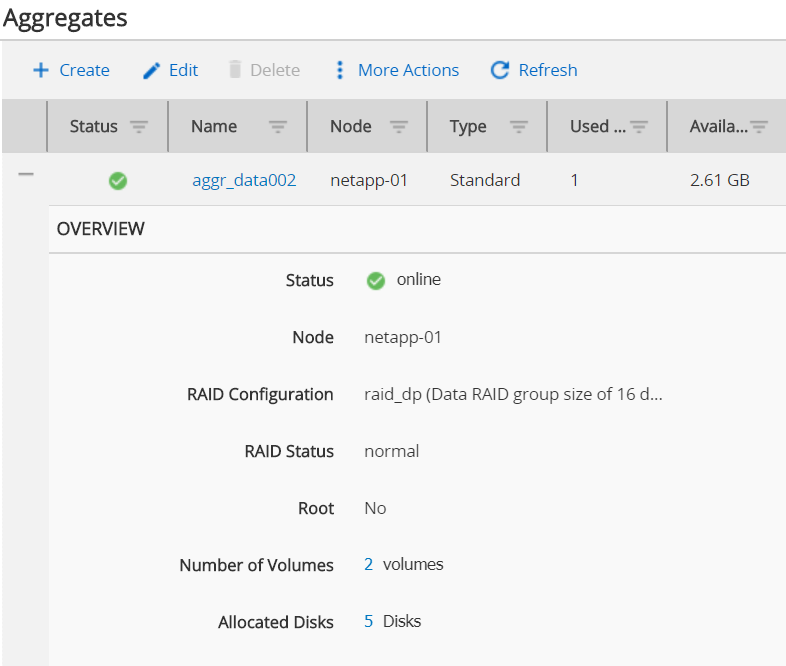

NetApp NFS Export with Ansible - New Aggregate

Create SVM

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
---
- name: Create SVM
  netapp.ontap.na_ontap_svm:
    state: present
    name: "{{ vserver_name }}"
    root_volume: "vol0_{{ vserver_name }}"
    root_volume_aggregate: "{{ aggr_name }}"
    root_volume_security_style: unix
    allowed_protocols: nfs
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

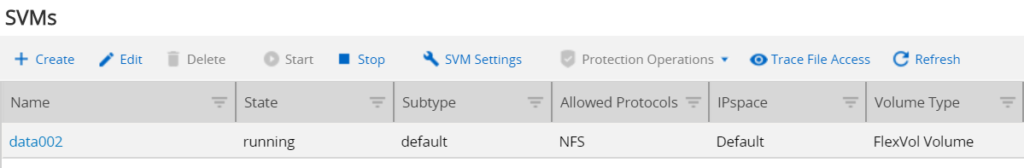

NetApp NFS Export with Ansible - New SVM

Configure Broadcast Domain

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
---
- name: Modify Default Broadcast Domain
  netapp.ontap.na_ontap_broadcast_domain:
    state: present
    name: Default
    mtu: 1500
    ipspace: Default
    ports: "{{ broadcast_ports_default }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    hostname: "{{ netapp_hostname }}"
    https: true
    validate_certs: false
- name: Create Broadcast Domain
  netapp.ontap.na_ontap_broadcast_domain:
    state: present
    name: "{{ broadcast_name }}"
    mtu: 1500
    ipspace: Default
    ports: "{{ broadcast_ports }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    hostname: "{{ netapp_hostname }}"
    https: true
    validate_certs: false

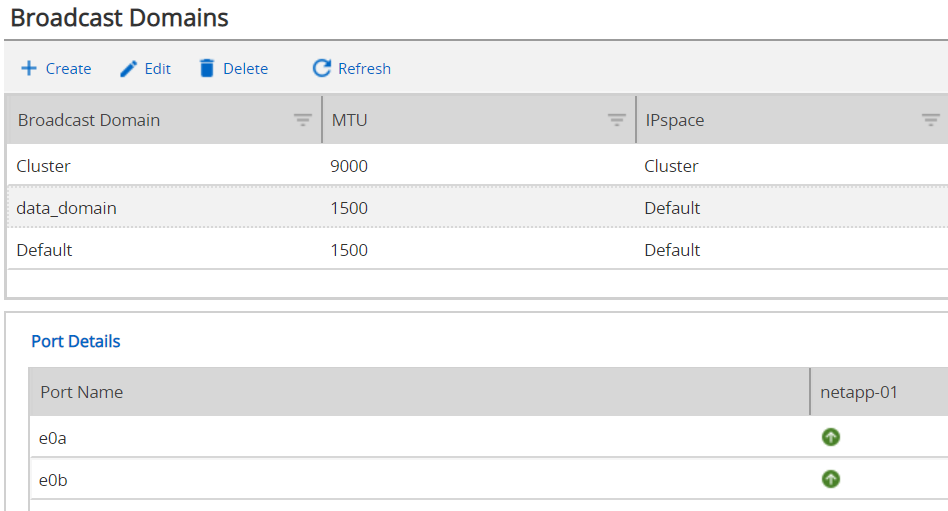

NetApp NFS Export with Ansible - Broadcast Domains

Create Interface

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
---
- name: Create NFS Interface
  netapp.ontap.na_ontap_interface:
    state: present
    interface_name: "if_{{ vserver_name }}"
    home_port: "{{ if_home_port }}"
    home_node: "{{ if_home_node }}"
    role: data
    protocols: nfs
    admin_status: up
    failover_policy: local-only
    firewall_policy: mgmt
    is_auto_revert: true
    address: "{{ if_address }}"
    netmask: "{{ if_netmask }}"
    vserver: "{{ vserver_name }}"
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

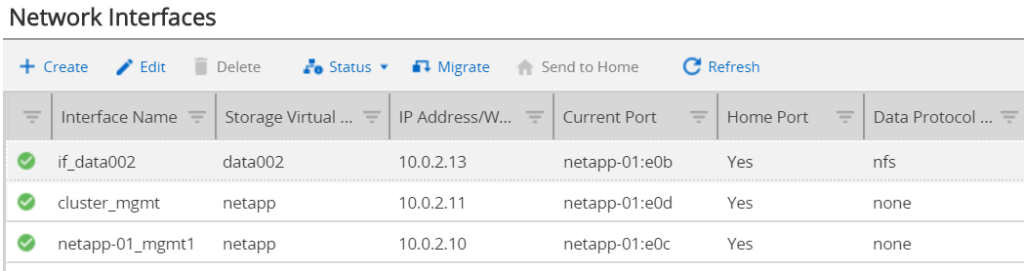

NetApp NFS Export with Ansible - Network Interfaces

Configure NFS Service

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
---
- name: Change NFS Status
  netapp.ontap.na_ontap_nfs:
    state: present
    service_state: started
    vserver: "{{ vserver_name }}"
    nfsv3: enabled
    nfsv4: enabled
    nfsv40_acl: enabled
    nfsv40_read_delegation: enabled
    nfsv40_referrals: enabled
    nfsv40_write_delegation: enabled
    nfsv41: enabled
    nfsv41_acl: enabled
    nfsv41_read_delegation: enabled
    nfsv41_write_delegation: enabled
    tcp: enabled
    udp: enabled
    vstorage_state: enabled
    showmount: enabled
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

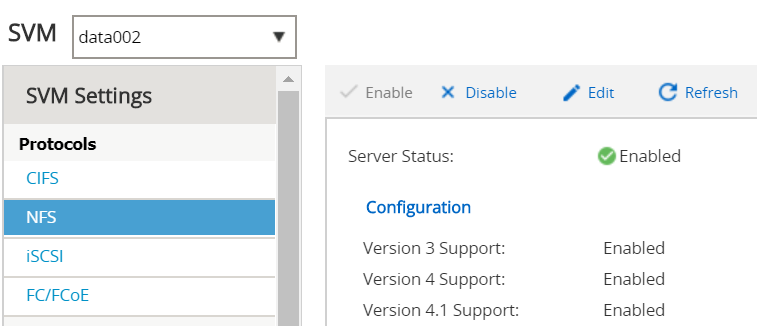

NetApp NFS Export with Ansible - NFS Service

Create NFS Export

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
---
- name: Modify default Export Policy Rule
  netapp.ontap.na_ontap_export_policy_rule:
    state: present
    policy_name: default
    vserver: "{{ vserver_name }}"
    client_match: 0.0.0.0/0
    ro_rule: any
    rw_rule: none
    super_user_security: none
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: yes
    validate_certs: false
- name: Create New Export Policy Rule
  netapp.ontap.na_ontap_export_policy_rule:
    state: present
    name:  "{{ export_policy_name }}"
    vserver: "{{ vserver_name }}"
    client_match: "{{ export_policy_rule_client }}"
    rw_rule: any
    ro_rule: any
    protocol: nfs,nfs3,nfs4
    super_user_security: any
    allow_suid: true
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: yes
    validate_certs: false

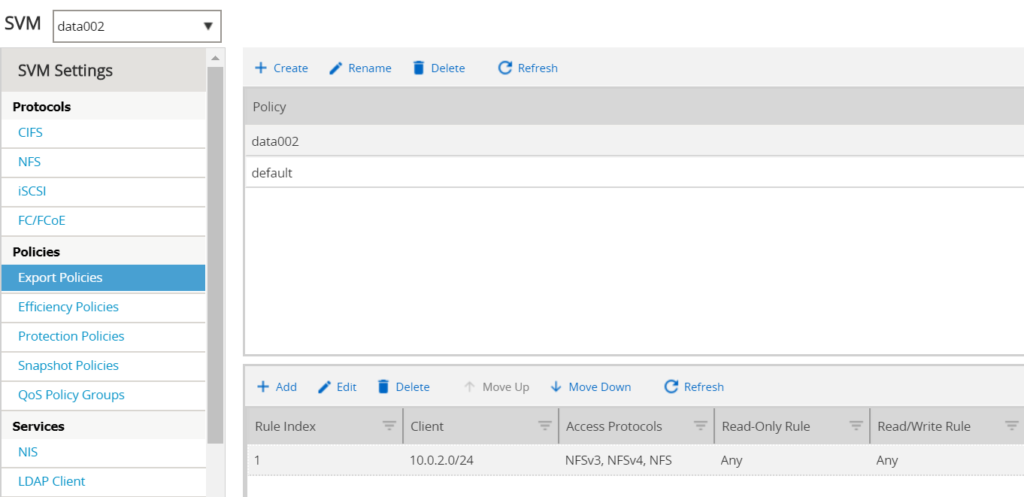

NetApp NFS Export with Ansible - NFS Export

Create Volume and set Junction Path

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
---
- name: Create Volume
  netapp.ontap.na_ontap_volume:
    state: present
    name: "{{ vol_name }}"
    junction_path: "/{{ vol_name }}"
    is_infinite: false
    aggregate_name: "{{ aggr_name }}"
    size: "{{ vol_size }}"
    size_unit: "{{ vol_size_unit }}"
    space_guarantee: none
    policy: "{{ export_policy_name }}"
    volume_security_style: unix
    percent_snapshot_space: 60
    vserver: "{{ vserver_name }}"
    wait_for_completion: true
    hostname: "{{ netapp_hostname }}"
    username: "{{ netapp_username }}"
    password: "{{ netapp_password }}"
    https: true
    validate_certs: false

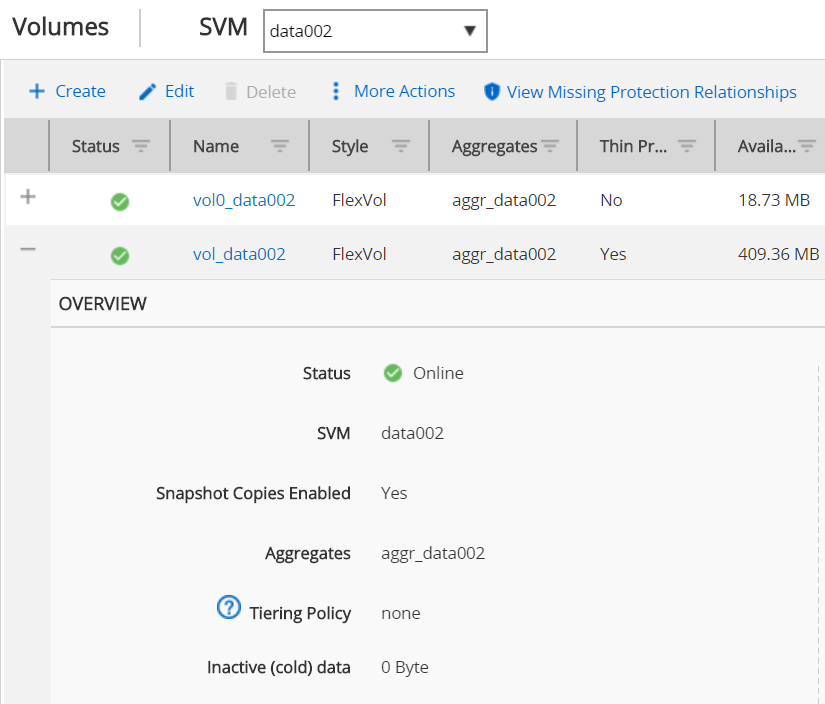

NetApp NFS Export with Ansible - Volumes

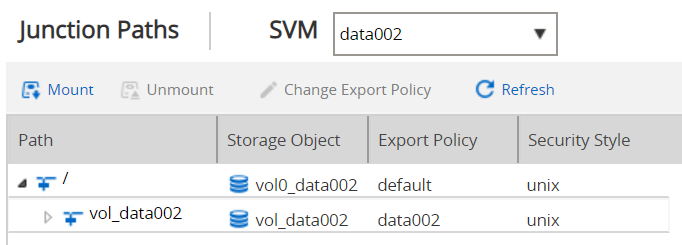

NetApp NFS Export with Ansible - Junction Paths
